The TKMGP is specifically engineered for use in single-line progressive lubrication systems, offering an adjustable grease dispensing quantity that can be tailored to meet specific operational requirements. This advanced system operates efficiently using compressed air, ensuring consistent and reliable grease delivery.
The grease pump features a dedicated grease nipple for easy re-filling of the grease reservoir,allowing for straight forward maintenance and replenishment. The reservoir itself is constructed from durable, rigid materials to withstand the rigors of industrial environments. Itincorporates a piston mechanism, which, when activated by pneumatic force, ensures a continuous and steady flow of grease into the metering system.
Our design guarantees precise and reliable lubrication, enhancing the performance and longevity of machinery while providing flexibility in grease dispensing to suit various operational needs.
| SR NO | MODEL NO | GREASE DISPENSING CAPACITY (GM) | RESERVOIR CAPACITY (KG) | AIR PRESSURE (BAR) | TYPE (A/M) |
|---|---|---|---|---|---|
| 1 | TK-MGP-1 | 0.1 - 1 | 2 | 10 | Auto (A) / Manual (M) |
| 2 | TK-MGP-2 | 1 - 4 | 3 | 10 | Auto (A) / Manual (M) |
| 3 | TK-MGP-X | X | X | X | Customized |
Example
Ordering no. for standard Grease Dispensing Systemup to 1 GM capacity, type A/M.

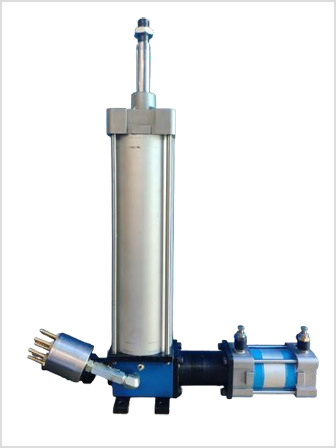

Multiple nozzle grease dispenser Setup

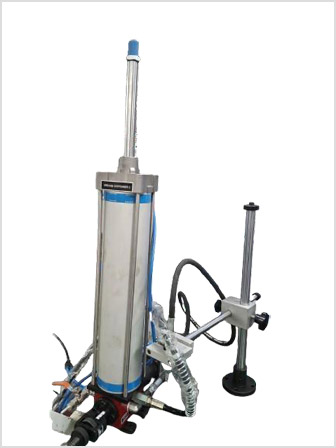

Fixnozzle Grease Dispenser Setup

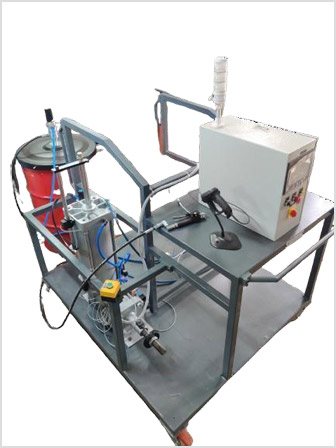

Automatic Grease Dispenser System

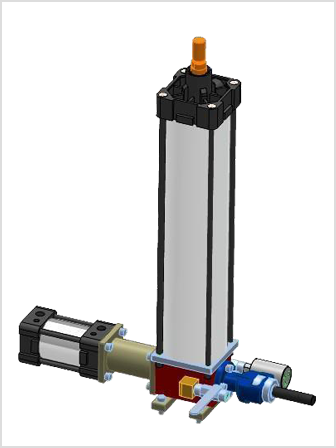

Pneumatic operated Metered Grease pump for single line progressive system with adjustable grease dispensing quantity.
|
 |
||||||||||||||||||||
